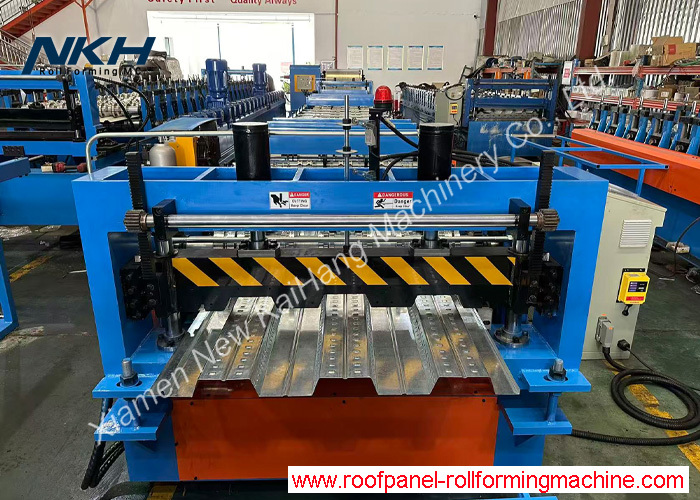

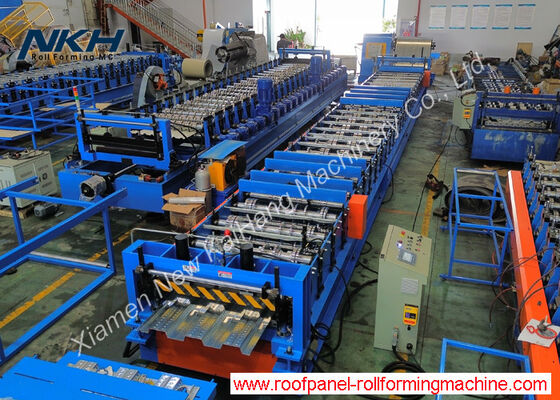

YX54-321-960 Deck Roll Forming Machine Metal Deck Panel for Steel Construction

Характер продукции

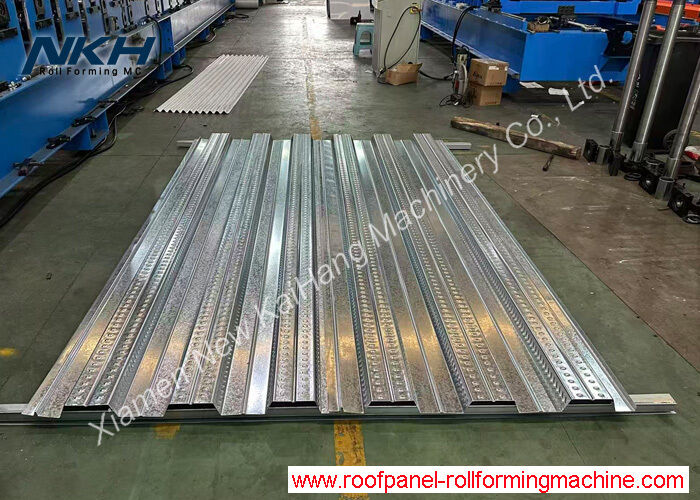

Metal floor decking roll forming machine, 54mm height rib, composite metal deck panel

Quick Detail:

1. Thickness : 0.8-1.2mm
2. Material : Galvanized sheets, G350-550
3. Coil width : 1219/1250mm
4. Effective width: 960mm
5. Material weight : 5tons, 6tons, 7tons, 8 tons, 10tons
6. Coil inner diameter : 510mm+/-+30mm
7. Driven way: by driven motor
8. Cutting way: by hydraulic group
9. Cutting tolerance : ±1mm

Application:

Steel roof deck: The steel roof decks are manufactured generally for the construction of pitched, flat, or curved roofing almost on all kinds of buildings;
Composite metal deck: The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.
Metal form deck: Metal form decks are produced and used extensively also in floor construction as a permanent steel base for poured reinforced concrete floor slabs.
Architectural deck: This kind of steel deck offers architects and engineers the ability to create amazing designing for striking and spacious interiors, as well as dramatic and high-performing exteriors.
Bridge deck: Where a bridge has main beams installed at suitable centers, steel decking may be placed across the beams without additional supports, suitable for new construction and bridge rehabilitation.

Description/Technical Parameter details of complete line:

• 5TX1250mm Hydraulic de-Coiler with/without coil car

Expansion system by hydraulic group, Pump motor: 3KW

Driven motor to run the coil, Motor: 3KW

Coil Inner-diameter=510+/-30mm

Coil width = Max.1250mm

Taper wedge expand type

Load capacity = Max. 5Tons

Snubber arms on top by pneumatic or hydraulic as per order

The coil car included or exclude as per order

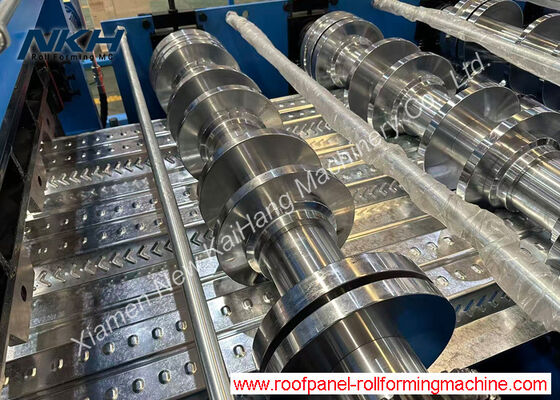

• Roll forming machine with cutting details as below table :

• PLC Control System

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Cut-to-length tolerance≤±1mm

Control Voltage 24V

Schneider brand low voltage electric elements

• Product Rack Un-powered, 3 units
